POWER CLAMP Clamping Systems

Double Edge Uniforce Clamps

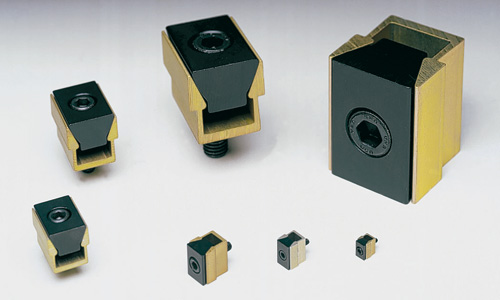

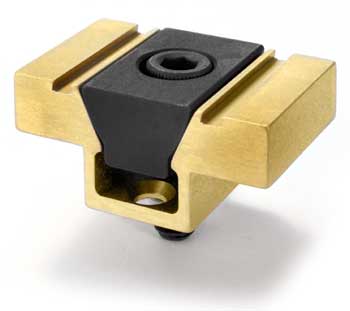

The compact POWER CLAMP Double Edge Clamp can clamp two workpieces simultaneously. Key Benefits:

  • Due to its compact construction, space-saving multiple clamping is possible, reducing tool changes and costs of fixtures,
  • good value for money,
  • perfectly suited to clamp both round and rectangular pieces,
  • strong holding force up to 27kN (2,7t).



Manufacturing a fixture becomes even more easy with our Locating Rails and Clamping Bars.
Allow us to show you how our expertise will contribute to your individual clamping problem.

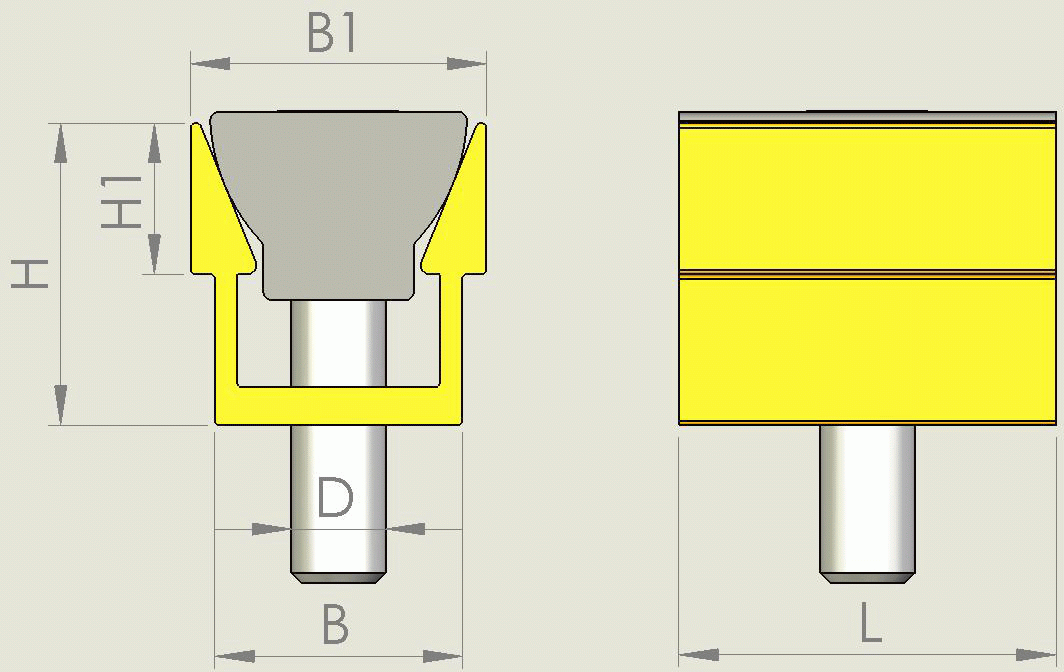

B1HLBH1DSWAHoldingTorquePer Art. No.
spreadForce Pack
[mm][mm][mm][mm][mm][mm][mm][mm][kN][Nm]
6,16,98,15,33,6M21,56,70,90,7680250
9,19,711,97,94,7M2,52101,31,5680375
12,314,515,910,45,6M4313,22,23,4880500
18,61923,816,19,5M6520,36,714,3680750
24,825,931,720,812,7M8626,98,914,5481000
37,338,647,630,819M101039,915,638,4281500
49,751,563,541,225,4M12145326,774,6282000

Spare-Aluminium-Channel

Art. No.for SizePer Pack
(Outer part with drill)
60205802506
60207803756
60210805008
60220807506
60230810004
60240815002
60245820002

Spare-Steel-Wedge

Art. No.for SizePer Pack
(Inner part with countersink)
60305802506
60307803756
60310805008
60320807506
60330810005
60340815002
60350820002

Double Edge Clamp sold by meter

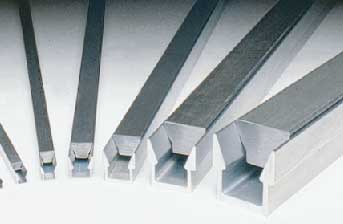

The POWER CLAMP Double Edge Clamp is available as 508 mm long bar as well. The long length clamping jaws give you greater versatility to machine the clamp to conform even better to your clamping specifications.

Double Edge Clamp Bars are available in 7 sizes without drills.

Art. No.Descriptionlike Size
62010Alu Channel80250
63010Steel Wedge80250
62020Alu Channel80375
63020Steel Wedge80375
62120Alu Channel80500
63120Steel Wedge80500
62220Alu Channel80750
63220Steel Wedge80750
62320Alu Channel81000
63320Steel Wedge81000
62420Alu Channel81500
63420Steel Wedge81500
62520Alu Channel82000
63520Steel Wedge82000
