Pitbull Clamps
Pitbull Machinable Clamps for Machine Tables

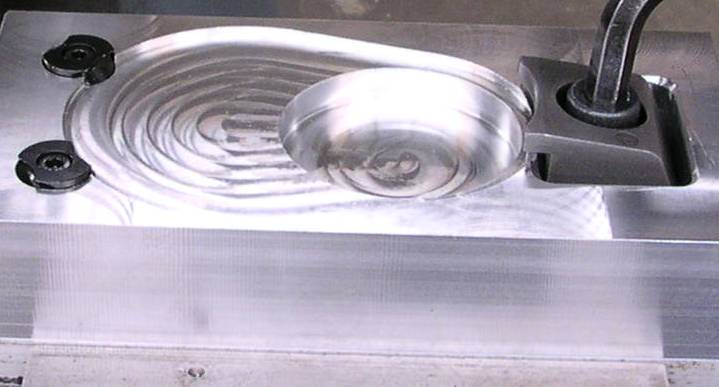

With the machinable Pitbull® fixture clamp we offer a version with additional material* on the clamping face to allow for machining a radius.
Made of tool steel and heat treated to about 43RC for long life, yet still machinable.
Like all Pitbull® fixture clamps this clamp offers as well
- compact design,
- strong holding force (positive down force),

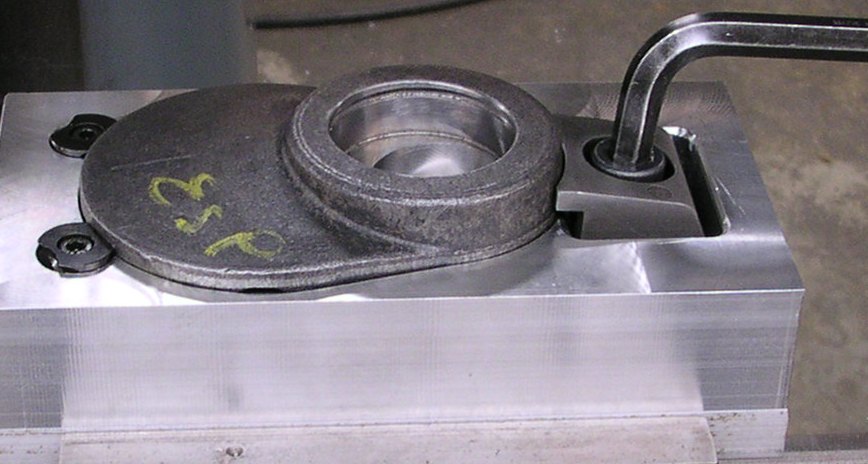

- very low gripping profile, making it well suited for machining pieces complete in one set up.
* The machining allowance is 1.5 mm for Part No. 56077 and 4.5 mm for Part No. 56088.

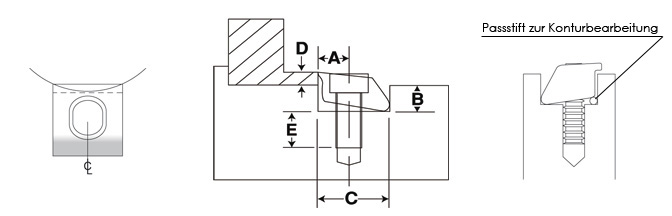

| Art.No. | A | B | C | D | E | Clamp | Thread | Hold | Torque | Clamp | D1 | Per |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Width | Force | Travel | Pack | |||||||||
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kN] | [Nm] | [mm] | [mm] | |||
| D1: Diameter of Dowel Pin for machining the clamp ( included in scope of supply). | ||||||||||||
| 56077 | 10,16 | 11,43 | 25,4 | 6,35 | 18 | 25,4 | M10 | 26 | 40,6 | 1,27 | 3,18 | 4 |
| 56088 | 15,24 | 16,26 | 38,1 | 9,52 | 19,6 | 38,1 | M12 | 50 | 145 | 1,9 | 6,35 | 2 |
