Pitbull Universal Clamps
Universal Pitbull® Clamps for Machine Tables

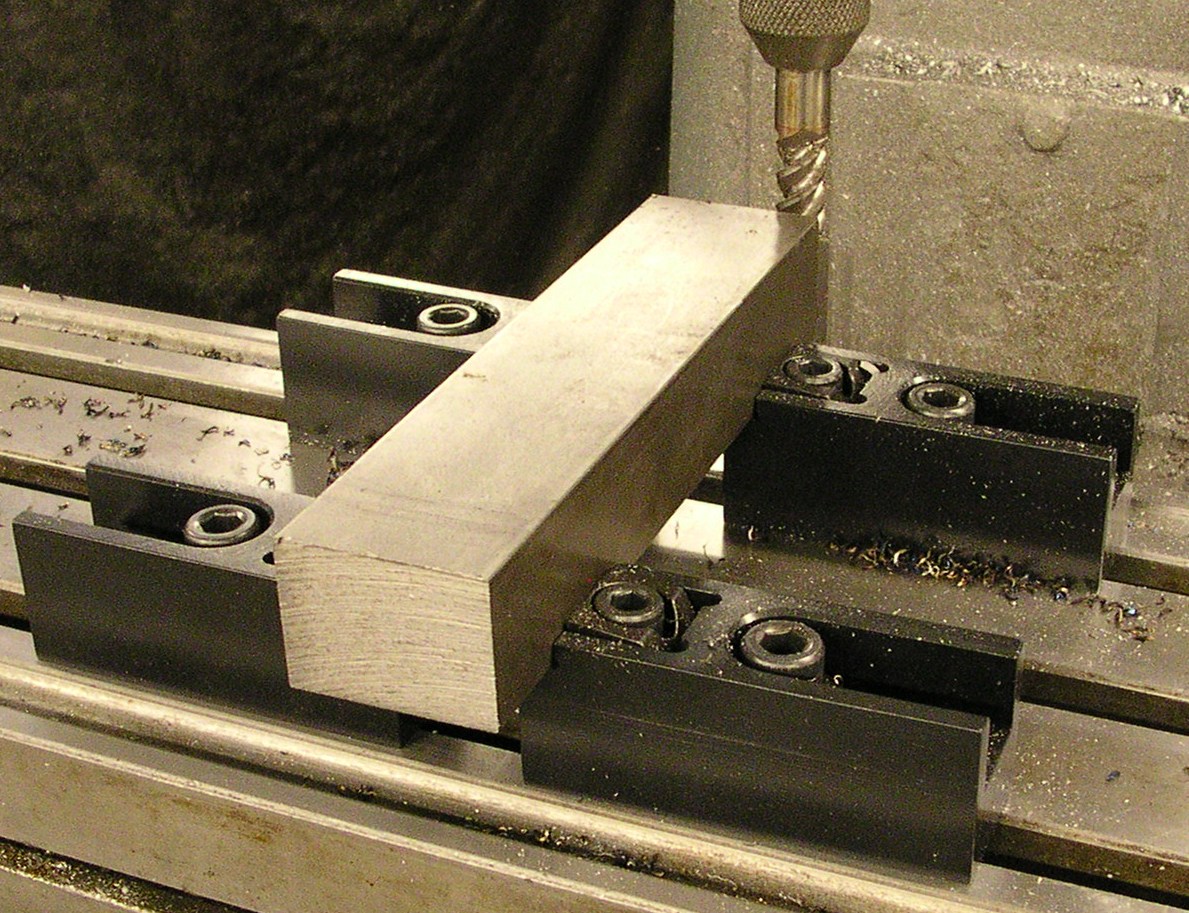

The slotted Universal Pitbull® Clamp offers increased versatility through its unique riser design. This clamp supports the workpiece off the machine table for thorough milling and drilling.

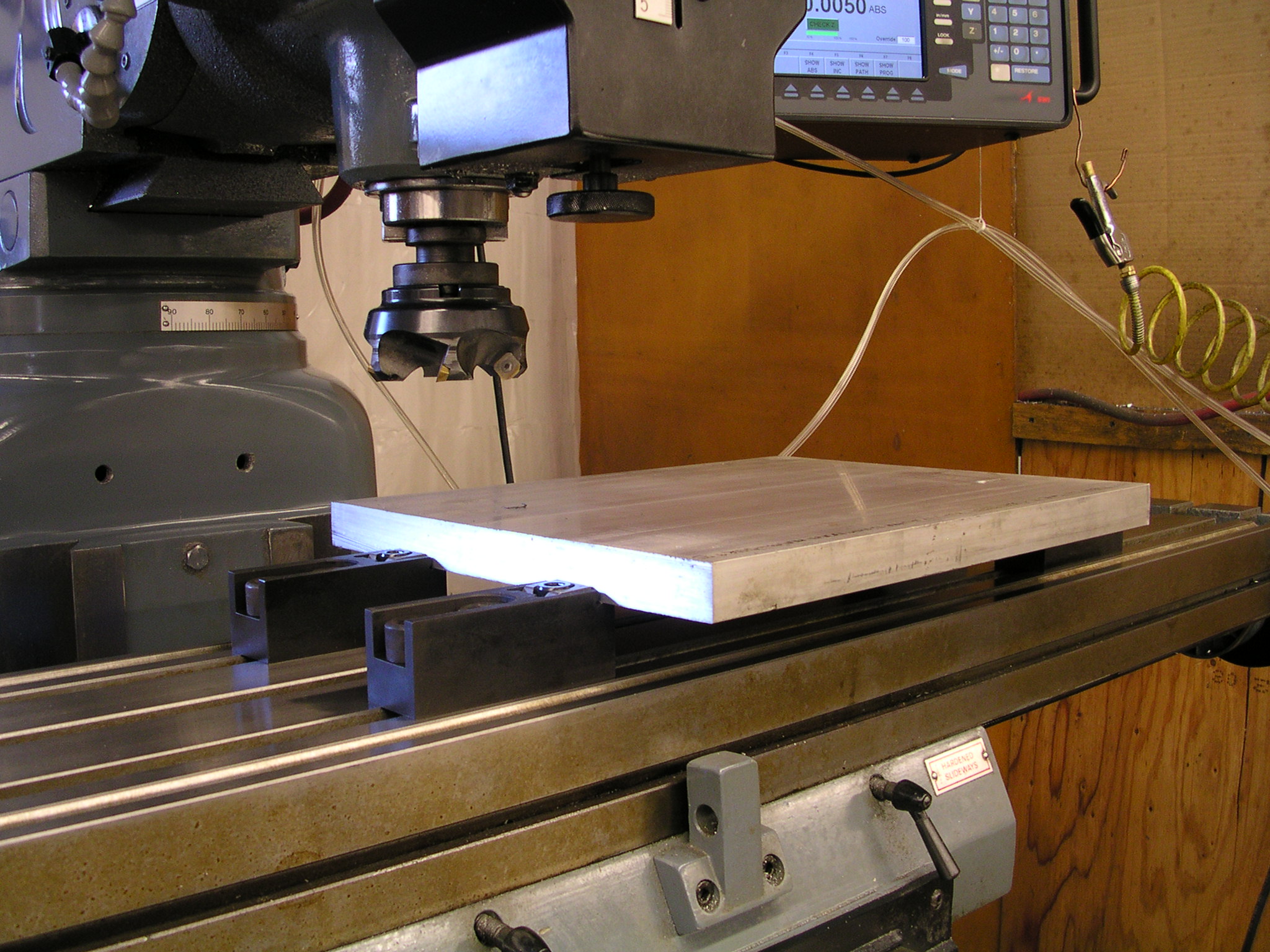

The hardened and ground clamps are designed for use on work cubes, as well as, machine tables with tapped holes or T-slot configurations.

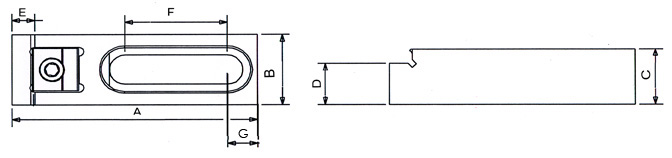

| Art.No. | A | B | C | D | E | F | G | Clamp | Hold | Screw | for | Clamp | Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Travel | Force | T-Slot | Width | ||||||||||
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kN] | [mm] | ||||
| 56240 | 103,6 | 31,7 | 25,1 | 18,542 | 9,1 | 43,2 | 12,7 | 0,61 | 16 | M12 | 14, 16, 18 | 19,1 | M6 |
| 56250 | 107 | 38,1 | 40,9 | 35 | 9,1 | 38,6 | 10,9 | 1,27 | 26 | M16 | 22, 24 | 25,4 | M10 |
