0.75" Dovetail Fixture

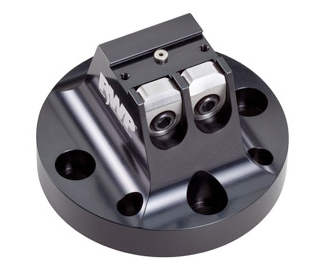

RAPTOR RWP-002

Art-No.:  RWP-002
0.75" Aluminium Dovetail Fixture,
H = 76,2 mm, D = 126,24 mm
  • Width Dovetail:   0.75 in
  • Height Dovetail:      0.125 in
  • Material Fixture:   7075-T6511 Aluminium,
    anodised Class 2, Type II
  • Material Clamp: Stainless Steel 17-4
  • Height Fixture: 76,2 mm (3 in)

Description

The RWP-002 is a 0.75" dovetail fixture for milling applications. It offers superior clamping strength while allowing access to five sides of the workpiece.

Typical workpiece dimensions (L x W x H):  from: 22.00" x 1.75" x 0.50" to: 5.80" x 5.80" x 5.80".

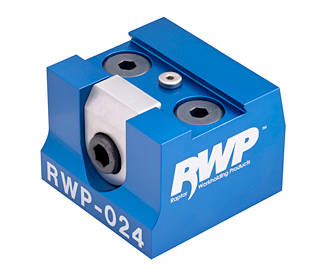

RAPTOR RWP-024

Art-No.:  RWP-024
0.75" Aluminium Dovetail Fixture,
H = 38,1 mm
  • Width Dovetail:   0.75 in
  • Height Dovetail:      0.125 in
  • Material Fixture:   7075-T6511 Aluminium,
    anodised Class 2, Type II
  • Material Clamp: Stainless Steel 17-4
  • Height Fixture: 38,1 mm (1.5 in)

Description

The RWP-024 is a .75" dovetail fixture with modular application capabilities in which multiple RWP-024 fixtures can be placed in-line to hold long parts, which we refer to as a bridge system.

Typical workpiece dimensions (L x W x H):  from: 2.00" x 2.00" x 0.50" to: 4.00" x 4.00" x 4.00".

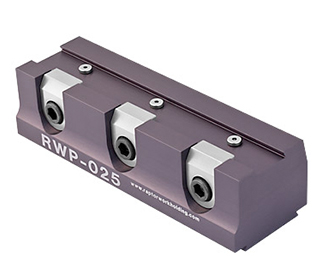

RAPTOR RWP-025

Art-No.:  RWP-025
0.75" Aluminium Mini Rail Dovetail Fixture with
1.5" Dovetail Base, H = 38,1 mm, L = 152,4 mm
  • Width Dovetail:   0.75 in
  • Height Dovetail:      0.125 in
  • Material Fixture:   7075-T6511 Aluminium,
    anodised Class 2, Type II
  • Material Clamp: Stainless Steel 17-4
  • Height Fixture: 38,1 mm (1.5 in)

Description

The RWP-025 is a 0.750" dovetail fixture designed for quick-change. It connects to the following 1.5" Dovetail Fixtures: RWP-001, RWP-001SS, RWP-004, RWP-013 and RWP-013SS, RWP-026, RWP-027.

Typical workpiece dimensions (L x W x H):  from: 6.00" x 1.75" x 0.50" to: 8.00" x 4.00" x 4.00"

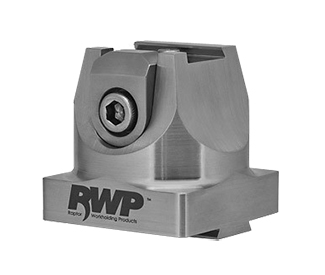

RAPTOR RWP-011SS

Art-No.:  RWP-011SS
0.75" Stainless Steel Dovetail Fixture
with 0.75" Dovetail Base
  • Width Dovetail:   0.75 in
  • Height Dovetail:      0.125 in
  • Material Fixture:   17-4 Stainless Steel,
    heat treated to H-1150
  • Material Clamp: 17-4 Stainless Steel
  • Height Fixture: 50,8 mm (2 in)

Description

The RWP-011SS is a .75" dovetail holder for milling applications, designed to connect directly to the following 0.75" dovetail fixtures: RWP-002, RWP-002SS, RWP-015, RWP-023. This allows you to quickly machine smaller size parts without taking your primary fixtures off of the machine.

Typical workpiece dimensions (L x W x H):  from: 1.26" x 1.3" x 0.50" to: 3.75" x 3.75" x 3.75"

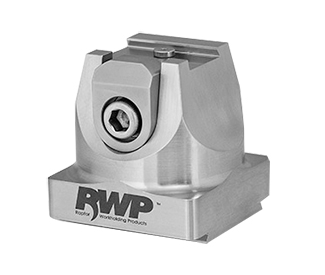

RAPTOR RWP-012SS

Art-No.:  RWP-012SS
0.75" Stainless Steel Dovetail Fixture
with 1.5" Dovetail Base
  • Width Dovetail:   0.75 in
  • Height Dovetail:      0.125 in
  • Material Fixture:   17-4 Stainless Steel,
    heat treated to H-1150
  • Material Clamp: 17-4 Stainless Steel
  • Height Fixture: 50,8 mm (2 in)

Description

The RWP-012SS is a .75" dovetail holder for milling applications, designed to connect directly to the following 0.75" dovetail fixtures: : RWP-001, RWP-001SS, RWP-004, RWP-013, RWP-013SS.

Typical workpiece dimensions (L x W x H):  from: 1.26" x 1.3" x 0.50" to: 3.75" x 3.75" x 3.75".

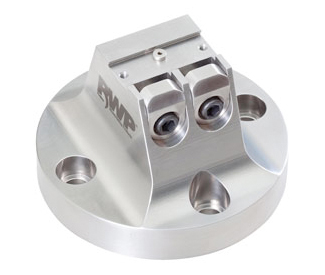

RAPTOR RWP-002SS

Art-No.:  RWP-002SS
0.75" Stainless Steel Dovetail Fixture,
H = 76,2 mm, D = 126,24 mm
  • Width Dovetail:   0.75 in
  • Height Dovetail:      0.125 in
  • Material Fixture:   17-4 Stainless Steel,
    heat treated to H-1150
  • Material Clamp: 17-4 Stainless Steel
  • Height Fixture: 76,2 mm (3 in)

Description

Die RWP-011SS is for those that want the ultimate in strength and wear resistance. This 0.75" dovetail fixture offers superior clamping strength while allowing access to five sides of the workpiece.

Typical workpiece dimensions (L x W x H):  from: 2.00" x 1.75" x 0.50" to: 6.375" x 6.375" x 6.375"

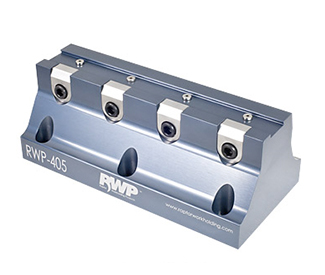

RAPTOR RWP-405

Art-No.:  RWP-405
0.75" Aluminium Rail Dovetail Fixture,
H = 76,2 mm, L = 203,2 mm (8 in)
  • Width Dovetail:  0.75 in
  • Height Dovetail:      0.125 in
  • Material Fixture:   7075-T6511 Aluminium,
    anodised Class 2, Type II
  • Material Clamp: Stainless Steel 17-4
  • Height Fixture: 76,2 mm (3 in)

Description

The RWP-405 is an aluminum rail, 203,2 mm (8") in length with four clamps, utilizes a 0.750" dovetail width x .125” high. It offers superior clamping strength and good access to five sides of the workpiece. The fixture can be used to hold one large workpiece or multiple pieces together along the same surface.

Typical workpiece dimensions (L x W x H):  from: 8.00" x 1.75" x 0.50" to: 14.0"" x 4.00" x 4.00".


RAPTOR RWP-030SS

Art-No.:  RWP-030SS
0.75" Stainless Steel Dovetail Fixture,
H = 76,2 mm
  • Width Dovetail:  0.75 in
  • Height Dovetail:      0.125 in
  • Material Fixture:   7075-T6511 Aluminium,
    anodised Class 2, Type II
  • Material Clamp: Stainless Steel 17-4
  • Height Fixture: 76,2 mm (3 in)

Description

The RWP-030SS with its three clamps provides versatility to either machine one long workpiece or three smaller workpieces. It offers superior clamping strength while allowing access to five sides of the workpiece.

Typical workpiece dimensions (L x W x H):  from: 5.0" x 1.75" x 0.50" to: 7.50" x 7.50" x 7.50".

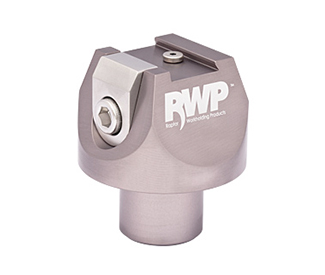

RAPTOR RWP-003

Art-No.:  RWP-003
0.75" Aluminium Dovetail Fixture for 5C Collet Closer
  • Width Dovetail:   0.75 in
  • Height Dovetail:      0.125 in
  • Material Fixture:   7075-T6511 Aluminium,
    anodised Class 2, Type II
  • Material Clamp: Stainless Steel 17-4
  • Height Fixture: 38,1 mm (1.5 in)

Description

The RWP-003 can be mounted in any 5C collet closer. It offers superior clamping strength and part access.

Typical workpiece dimensions (L x W x H):  from: 1.273" x 1.3" x 0.50" to: 3.0" x 3.0" x 3.0".
