TOOLEX adapters, risers and extenders allow you to attach RAPTOR workholding products to any four or five-axis CNC machine.

If you need an adapter or riser not seen here, please let us know.

Adapters, Risers and Extenders
for Dovetail Fixtures

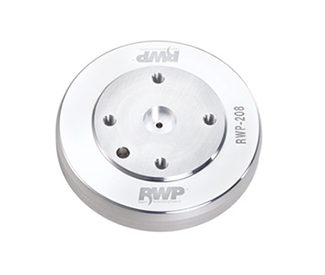

RAPTOR RWP-208

Art-No.:  RWP-208
Aluminum Adapter without mounting holes, D = 7.950"
  • Diameter D:       7.950 in
  • Height H:           1.5 in
  • Material:           6061 Aluminium
  • Maschine-Type: any
  • Connects to: RWP-001(SS), RWP-002(SS),
    RWP-013(SS), RWP-018(SS),
    RWP-030SS

Description

The RWP-208 is an adapter plate that enables the following fixtures: RWP-001(SS), RWP-002(SS), RWP-013(SS), RWP-018(SS) or RWP-030SS to be mounted on the pallet of your machine. You simply add the mounting holes necessary to connect this adapter to your machine. Once this adapter is mounted to your machine a Raptor Dovetail Fixture simply bolts down using the four cap screws and one dowel pin that are included with your fixture.

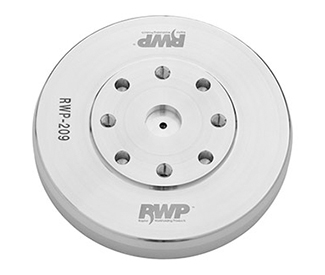

RAPTOR RWP-209

Art-No.:  RWP-209
Aluminum Adapter without mounting holes, D = 9.055"
  • Diameter D:       9.055 in
  • Height H:           1.5 in
  • Material:           6061 Aluminium
  • Maschine-Type: any
  • Connects to: RWP-001(SS), RWP-002(SS),
    RWP-006(SS), RWP-013(SS),
    RWP-018(SS), RWP-030SS

Description

The RWP-209 is an emergency adapter plate that enables any RWP-001(SS), RWP-002(SS), RWP-006(SS), RWP-013(SS), RWP-018(SS), or RWP-030SS dovetail fixture to be mounted on the pallet of your machine. You simply add the mounting holes necessary to connect this adapter to your machine. Once this adapter is mounted to your machine a Raptor Dovetail Fixture simply bolts down using the four cap screws and one dowel pin that are included with your fixture.

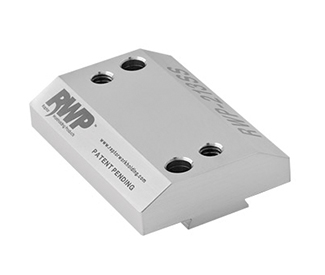

RAPTOR RWP-213SS

Art-No.:  RWP-213SS
Stainless Steel 0.75" Adapter for RWP-019SS
  • Material:           17-4 Stainless Steel
  • Connects to: RWP-002(SS), RWP-015, RWP-023,
    RWP-024, RWP-030SS

Description

The RWP-213SS connector allows you to connect the RWP-019SS to any of the following 0.75" dovetail fixtures: RWP-002(SS), RWP-015, RWP-023, RWP-024 or RWP-030SS. The RWP-213SS is made from 17-4 Stainless Steel.

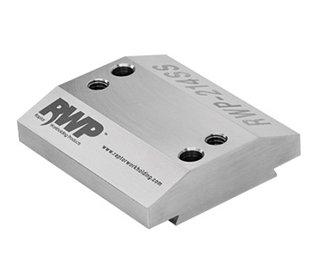

RAPTOR RWP-214SS

Art-No.: RWP-214SS
Stainless Steel 1.5" Adapter for RWP-019SS
  • Material: 17-4 Stainless Steel
  • Connects to: RWP-001(SS), RWP-004, RWP-013(SS),
    RWP-026, RWP-027

Description

The RWP-214SS connector allows you to connect the RWP-019SS to any of the following 1.5" dovetail fixtures: RWP-001(SS), RWP-004, RWP-013(SS), RWP-026 or RWP-027. RWP-214SS is made from 17-4 Stainless Steel.

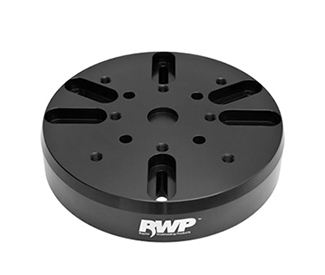

RAPTOR RWP-222

Art-No.:  RWP-222
Aluminum Universal Adapter D = 9.875", H = 2.00"
  • Diameter D:     9.875 in
  • Height H:           2.00 in
  • Material:           7075 Aluminium, anodized Type II Class 2
  • Maschine Type: any
  • Connects to: RWP-001(SS), RWP-002(SS), RWP-006(SS),
    RWP-013(SS), RWP-018(SS), RWP-030,
    RWP-206, RWP-601, RWP-602

Description

This universal adapter has mutliple slots to allow for use on multiple machine pallets or rotary tables and is modular in design with many options:

  1. Mounts directly with the following standard fixtures: RWP-001(SS), RWP-002(SS), RWP-006(SS),
    RWP-013(SS), RWP-018(SS) or RWP-030SS,
  2. Mounts with the Riser RWP-206 with any standard fixture,
  3. Use either Extender RWP-601 or RWP-602 with any standard fixture.

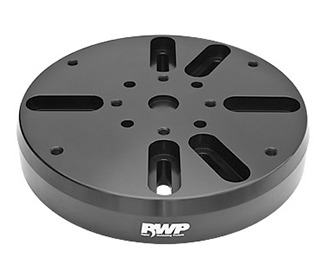

RAPTOR RWP-223

Art-No.: RWP-223
Aluminum Universal Adapter D = 11.950", H = 2.00"
  • Diameter D: 11.950 in
  • Height H: 2.00 in
  • Material: 7075 Aluminium, anodized Type II Class 2
  • Maschine Type: any
  • Connects to: RWP-001(SS), RWP-002(SS), RWP-006(SS),
    RWP-013(SS), RWP-018(SS), RWP-030SS,
    RWP-224, RWP-601, RWP-602,

Description

This universal adapter has multiple slots to allow for use on multiple machine pallets or rotary tables and is modular in design with many options:

  1.     Mounts directly with the standard fixtures RWP-001(SS), RWP-002(SS), RWP-006(SS), RWP-013(SS), RWP-018(SS) or RWP-030SS,
  2.     Mounts with the Riser RWP-224 with any standard fixture,
  3.     Use either Extender RWP-601, RWP-602 with any standard fixture.

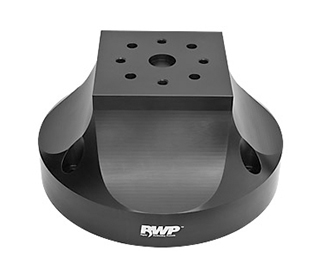

RAPTOR RWP-224

Art-No.:  RWP-224
Aluminum Riser D = 11.9", H = 6"
  • Diameter D:      11.9 in
  • Height H:           6 in
  • Material:           7075 Aluminium
  • Maschine-Type: any
  • Connects to: RWP-001(SS), RWP-002(SS),
    RWP-003-4X, RWP-006(SS),
    RWP-013(SS), RWP-018(SS) or -30SS

Description

This riser can be used in a modular configuration when used with the Unviersal Adapter RWP-223 and any of the following standard fixtures: RWP-001(SS), RWP-002(SS),RWP-003-4X, RWP-006(SS), RWP-013(SS), RWP-018(SS) or RWP-030SS.

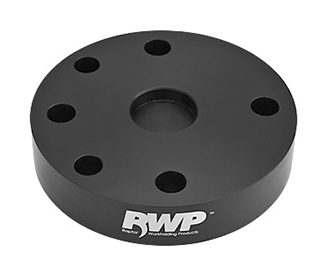

RAPTOR RWP-601

RAPTOR RWP-601

Art-No.:  RWP-601
Aluminum Extender D = 4.97", H = 1"
  • Diameter D:       4.97 in
  • Height H:           1 in
  • Material:           7075 Aluminium
  • Maschine-Type: any
  • Connects to: RWP-001(SS), RWP-002(SS),
    RWP-013(SS), RWP-018(SS),
    RWP-208, RWP-222, RWP-223.

Description

The 1" Extender is to add height when used with either Universal Adapter: RWP-222 or RWP-223 in lieu of using a riser. It is to be used for modular configuration with standard fixtures RWP-001(SS), RWP-002(SS), RWP-013(SS), RWP-018(SS).

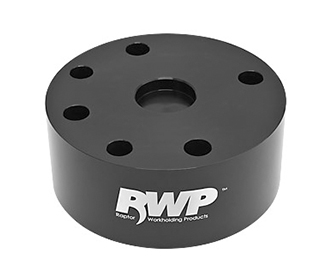

RAPTOR RWP-602

RAPTOR RWP-602

Art-No.: RWP-602
Aluminum Extender D = 4.970", H = 2"
  • Diameter D: 4.970 in
  • Height H: 2 in
  • Material: 7075 Aluminium
  • Maschine-Type: any
  • Connects to: RWP-001(SS), RWP-002(SS),
    RWP-013(SS), RWP-018(SS), RWP-030SS
    RWP-208, RWP-209, RWP-222, RWP-223.

Description

The 2" Extender is to add height when used with either Universal Adapter RWP-222 or RWP-223 in lieu of using a riser. It is to be used for modular configuration with the standard fixtures RWP-001(SS), RWP-002(SS), RWP-013(SS) or RWP-018(SS).
