POWER CLAMP Xpansion Clamps

Side-Lock Xpansion Clamps

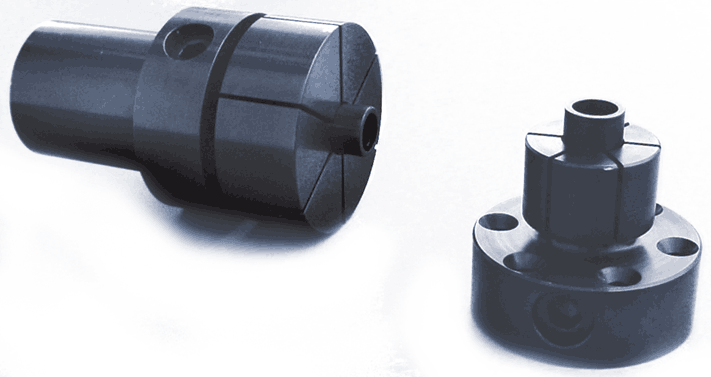

The Side-Lock Xpansion Clamp is the ideal way to hold parts on the bore when you can not access the tapered screw. It's available in different sizes (see chart), whereas the customer has to machine the clamp to fit the bore of the part. The Side-Loc Xpansion Clamp is designed in two styles:

  • one for milling operations and
  • one for lathe applications (which has a straight mounting shank of  25mm)

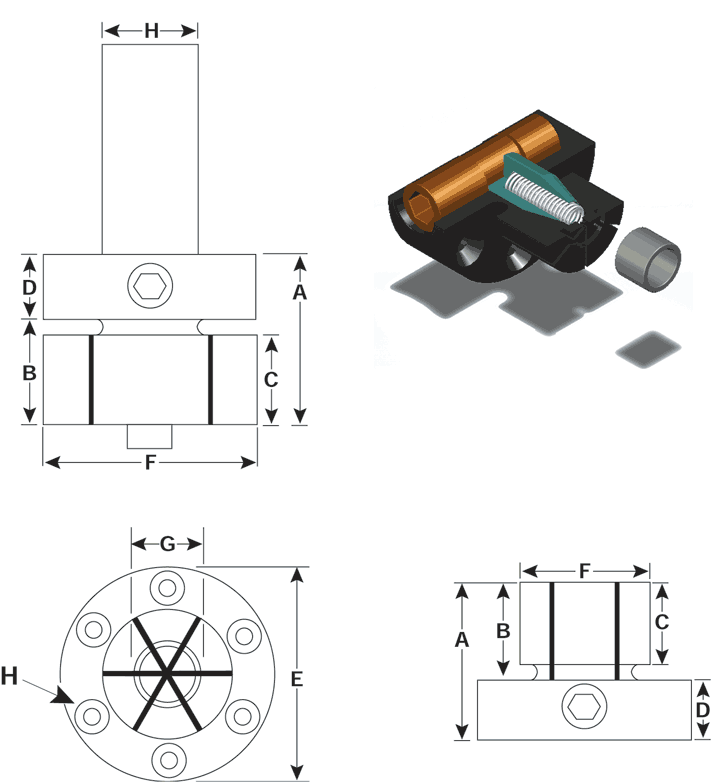

Art.VersionABCDEFG*HTKØHexagonHolding
No. SocketForce
[mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][kN]
Mill: for milling operations. Lath: for lathe applications
38210Mill41,0022,0017,5019,0050h828,7017,80M439,406,0020,00
38370Lath44,4025,0021,0019,0053,3h853,3018,00Ø25L=456,0020,00
