POWER CLAMP Fixture Clamps

Fixture Clamps for Machine Tables

Combined with a T-nut you make out of every cam action clamp with an hexagonal brass washer or a knife edge washer a low cost fixture clamp for Machine Tables or Mounting Plates with T-slots. The T-nut simply will be locked with a screw into the T-slot.

Key benefits:

Locks in machine T-slot for low profile clamping.
Makes fast set-ups possible right on the machine table.
Brass hex follows contour of unusual shaped parts.
Strong holding force up to 27kN (2,7t).
Good value for money!

for	Hexagon	Thread	Thread	Washer	Washer	Clamping	Holding	Per Pack	Art. No.
T-Slot	Socket		Length	SW	Height	Travel	Force
[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
8	3	M6	12	16	4,8	1,0	3,4	2	50422
10	4	M6	12	16	4,8	1,0	3,4	2	50424
10	5	M8	16	21	4,8	1,0	3,6	2	50426
14	7	M10	20	21	6,4	1,6	9,0	2	50428
16	8	M12	25	25	9,5	2,0	18	2	50430
18	8	M12	25	25	9,5	2,0	18	2	50432
20	12	M16	30	30	12,7	2,5	27	2	50434
22	12	M16	30	30	12,7	2,5	27	2	50436

Fixture Clamps for Machine Tables,

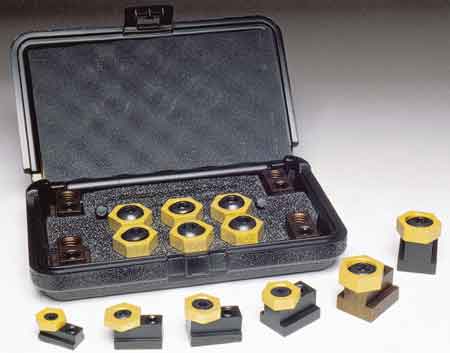

13-part Kit

Kit for T-slots 8 - 22 mm, with storage-box. Containing:

6 Fixture Clamps with hexagonal
brass washer
4 T-Nuts
2 Hex Keys

for T-Slot [mm]	8	10	12	14	16	18	20	22
Art. No.	50642	50644	50646	50648	50650	50652	50654	50656

Spare-Screws

Thread	Per Pack	Art. No.
M6	10	50365
M8	8	50367
M10	4	50369
M12	4	50371
M16	4	50373

Spare-Washer

Size	Per Pack	Art. No.
M6	10	10582
M8	8	10584
M10	4	10586
M12	4	10590
M16	4	10592

Spare-T-Nuts
