POWER CLAMP Fixture Clamps
Fixture Clamps with with Knife Edge Washer

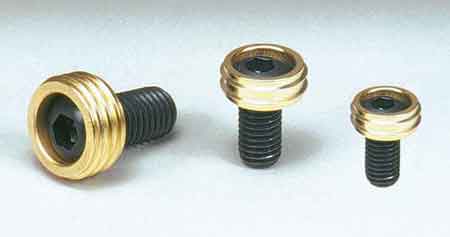

For clamping rough pieces and castings the Fixture Clamp specially designed with a hardened Knife Edge Washer Element suits best.
Available in 3 sizes with a holding force up to 27 kN.

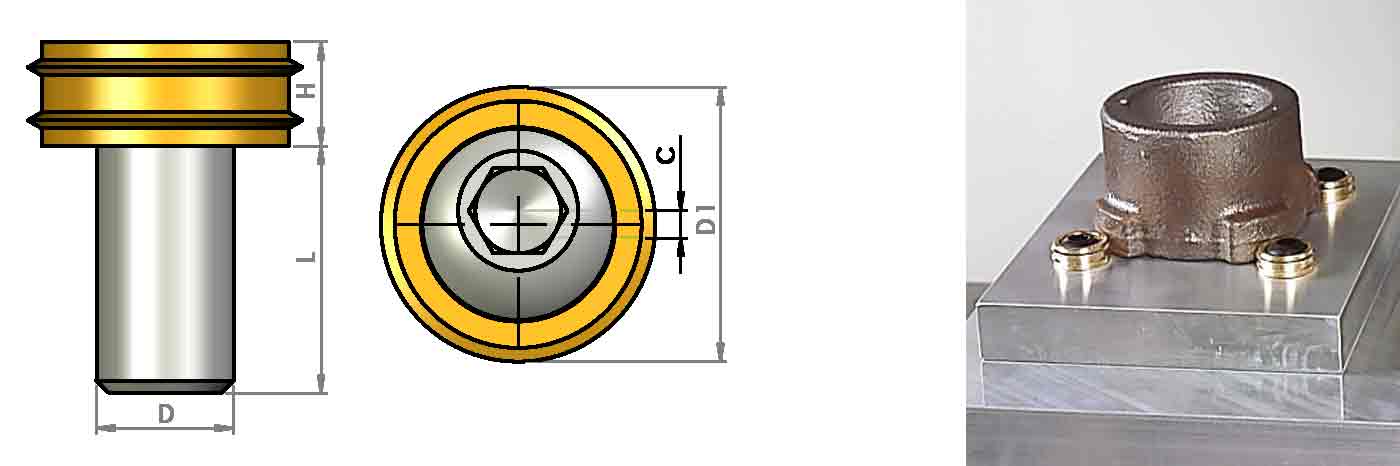

| Holding | Hexagon | Thread | Thread | Washer | Washer | Clamping | Per | Art. No. |
|---|---|---|---|---|---|---|---|---|
| Force | Socket | Ø | Length | Ø | Height | Travel | Pack | |
| [kN] | [mm] | D [mm] | L [mm] | D1 [mm] | H [mm] | C [mm] | ||
| 9 | 7 | M10 | 16 | 20,6 | 9,6 | 1,6 | 8 | 82584 |
| 18 | 8 | M12 | 22,5 | 25,4 | 9,6 | 2 | 8 | 82588 |
| 27 | 12 | M16 | 26,8 | 30,1 | 12,7 | 2,5 | 4 | 82592 |
Spare-Screws
| Thread | Per Pack | Art. No. |
|---|---|---|
| M4 | 10 | 50363 |
| M6 | 10 | 50365 |
| M8 | 8 | 50367 |
| M8VA* | 8 | 50366 |
| M10 | 4 | 50369 |
| M12 | 4 | 50371 |
| M16 | 4 | 50373 |
Spare-Knife-Edge-Washers
| Size | Per Pack | Art. No. |
|---|---|---|
| M10 | 8 | 12584 |
| M12 | 8 | 52588 |
| M16 | 4 | 12592 |
