POWER CLAMP Double Edge Clamps

Machinable Double Edge Uniforce Clamps

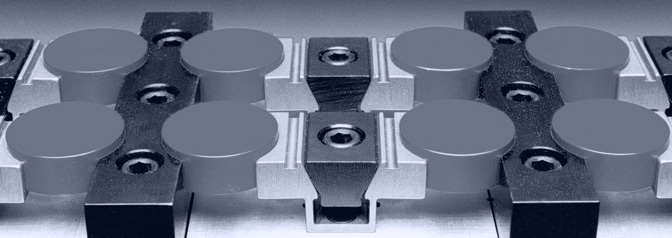

The machinable POWER CLAMP Double Edge Clamp comes with extra material on the clamping jaws so it can be machined to conform to the shape of your workpiece - enabling you to produce a form-fit clamping.  - Key Benefits:

  • holds round and unusual shape parts with ease,
  • clamps weak parts free of torsion,
  • due to its compact construction, space-saving multiple clamping is possible,
  • high productivity, low non-productive times,
  • perfectly suitable for  machining centers, milling and boring machines.

A unique locking plate is provided to make the clamp rigid while machining the jaws to your specifications, without vibration. Double Edge Clamps are available in five sizes.

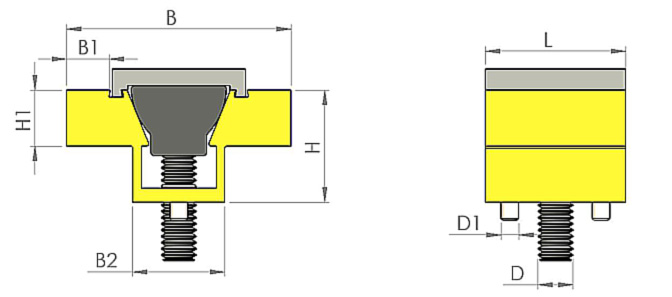

BHLB2H1B1D1DTorqueHoldingPerArt.No.Locking
ForcePack Plate
[mm][mm][mm][mm][mm][mm][mm][mm][Nm][N]
28,612,715,710,676,34,6M2M43,42225180050Yes
28,612,715,710,676,34,6M2M43,42225180055No
38,119,123,916,059,46,6M4M614,36675180075Yes
38,119,123,916,059,46,6M4M614,36675180080No
50,825,431,820,8312,79,9M4M814,58900180100Yes
50,825,431,820,8312,79,9M4M814,58900180105No
76,238,147,530,8619,115,7M5M1238,415575180150Yes
76,238,147,530,8619,115,7M5M1238,415575180155No
101,650,863,541,2825,420,3M6M1674,626700180200Yes
101,650,863,541,2825,420,3M6M1674,626700180205No
