MITEE-BITE Locating Rails


Is it taking too long to make a fixture and start production?

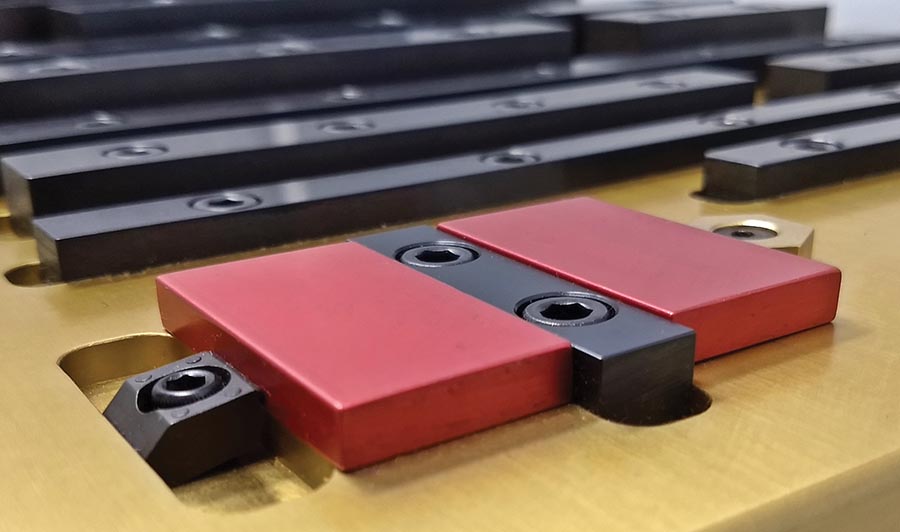

MITEE-BITE Ready Made Locating Rails make building a fixture easy and quick, and thus very economical!
  • Available in a great number of sizes and lengths
    to suit most applications,
  • Made of low carbon steel to machine steps,
    radii and contours on the rails,
  • Precision ground to ensure exact work results,
  • All required screws are included (DIN 912).

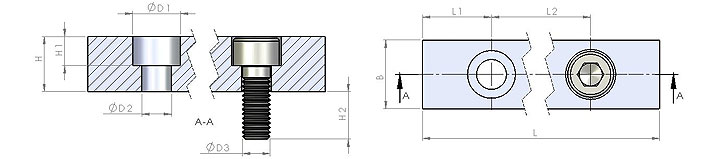

Art. No.HH1H2BLL1L2DD2D3Holes
[mm][mm][mm][mm][mm][mm][mm][mm][mm] #

Locating Rail Installation

  • Mill a slot to locate the rail. Depth of slot will
    determine rail height.
  • Drill and tap the required holes to mount the rail.
  • For better rigidity, the rail should be pinned to
    the fixuture plate with dowel pins.
  • If rails are to be machined to hold round pieces,
    the clamps should be mounted and both rail and clamp machined at the same time.
