Articulated Stands
WITH FINE ADJUSTMENT on the BASE


HOLDTEC Modular 5-Axis Stand
for Measurement and
Mechanical Engineering

Especially suited for hardly accessible areas.

The Fine Adjustment on the base enables an easy and precise adjustment. Zero-setting becomes faster than with any other mechanism.

  • WITH FINE ADJUSTMENT on the BASE
  • Modular 5-Axis Stand for Measurement and
    Mechanical Engineering
  • Choose the arms that fit your needs!
    With 4 basic sizes you can assemble 10 different holders
  • Universal gauge bracket for shanks
    Ø 8 mm, Ø 3/8” and dovetail.
  • Central locking mechanism with HOLDTEC designed
    spring loaded bearing.
  • Powerful on/off magnetic base.
  • Gold finished columns and arms made of
    anodized highstrength aluminium alloy.

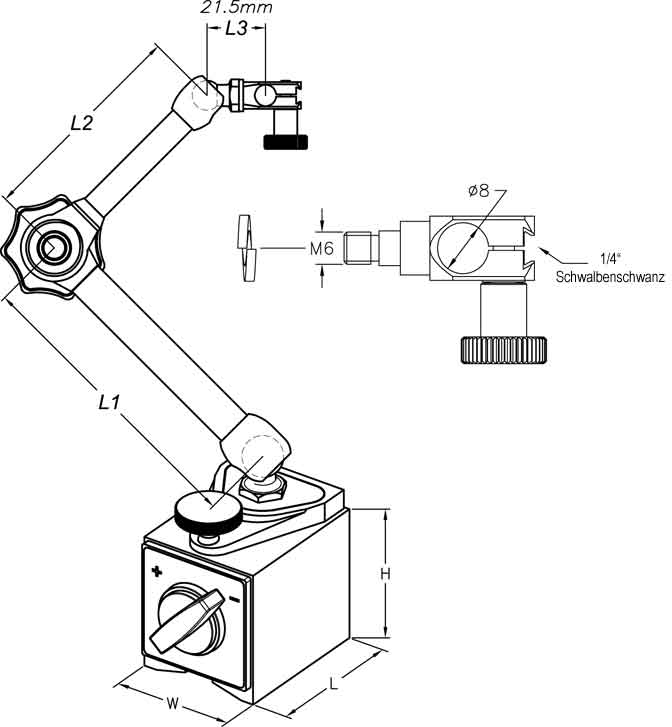

Handle Lenghts Magnetic Base
Art. No.WeightColumnArmOverallHolding StrengthDimensions
[kg]L1L2L1 + L2 + L3[N]W x L x H
Alle Maße in mm außer es ist eine andere Einheit angegeben.
HT2110 0,43805015232030 x 40 x 35
HT3210 1,281108021280050 x 60 x 55
HT4310 1,4614011027280050 x 60 x 55
