HOLDTEC Articulated Alignment Stands


HOLDTEC Alignment Stands
for the quick and exact alignment
of workpieces, vises and other devices

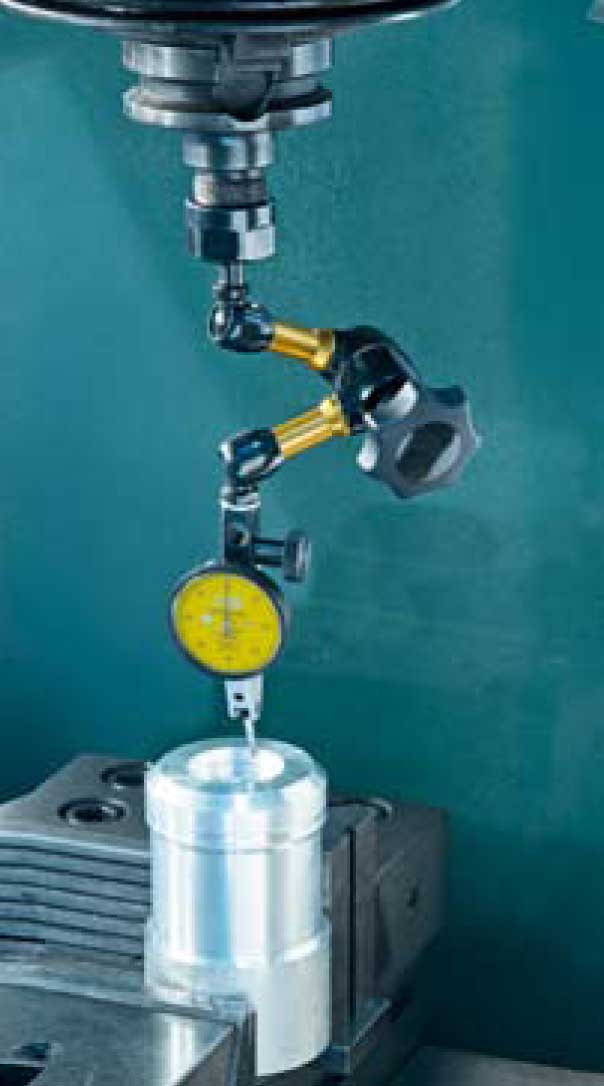

  • To determine the center of holes or workpieces.
  • For exact measuring of workpieces.
  • Forr gauges with round shank or dovetail holding.
  • Fast central locking mechanism with HOLDTEC
    designed spring loaded bearing.
  • With Ø 8mm clamping shank for drill chucks or collets.
  • With colum 50 mm and swifelarm 50 mm.
  • Gold finished arms and columns.


Art. Nr.BezeichnungAktionsradiusSäule (L1)Querarm (L2)AufnahmeLänge (L3)
All measurements in mm unless otherwise indicated.
HT1022Ausrichtstativ mit Feineinstellung17150503/8”, 6, 871
