SNAPPER Centering Vises are especially designed for raw part machining of steel and non-ferrous metals, as well as  plastics, and can ensure the very highest quality and reliability on 5-axis and other machining centers.

Clamping pressure up to 200 Nm2 on just 3 mm clamping depth with 2 rows of teeth (pull-down spring return and positioning).

The base body is hardened and grinded on all sides +/-0.02 mm, the clam­ping jaws are hardened and grinded. The spindle is thermally treated, the guide pillars hardened and coated.

No prior shaping necessary!

PIRANHA SNAPPER - Centering Vises

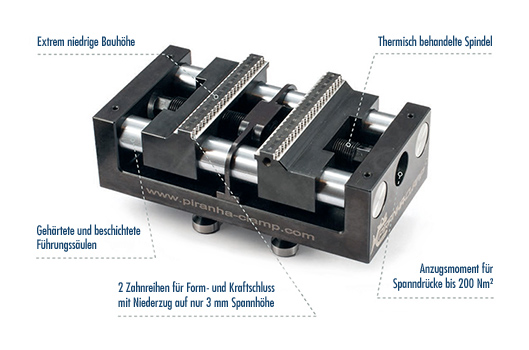

Fig.1: PIRANHA Snapper 170




Art. No.:  PC540362

L x B x H :   170 x 90 x 55 mm
Gewicht :     4,5 kg





with raised clamping jaws (+10 mm)

Art. No.:  PC540446

L x B x H :   170 x 90 x 65 mm
Gewicht :     4,6 kg




Art. No.:  PC540401

L x B x H :   300 x 120 x 66 mm
Gewicht :    11,5 kg





with raised clamping jaws (+10 mm

Art. No.:  PC540447

L x B x H :   300 x 120 x 76 mm
Gewicht :    11,6 kg
