1.5" Dovetail FixtureS

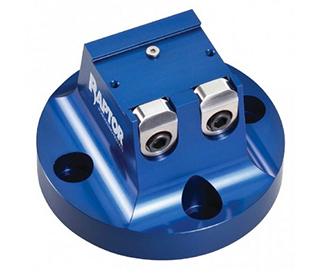

RAPTOR RWP-001

Art-No.:  RWP-001
1.5" Aluminium Dovetail Fixture,
H = 76,2 mm, D = 126,24 mm
  • Width Dovetail:   1.5 in
  • Height Dovetail:      0.125 in
  • Material Fixture:   7075-T6511 Aluminium,
    anodised Class 2, Type II
  • Material Clamp: Stainless Steel 17-4
  • Height Fixture: 76,2 mm (3 in)

Description

The RWP-001 is a 1.5" dovetail fixture used in four and five axis CNC machining. This fixture offers high clamping strength while allowing access to five sides of the workpiece. Most machining can be completed in a single operation.

Typical workpiece dimensions (L x W x H):  from: 2.35" x 2.25" x 0.50" to: 6.75" x 6.75" x 6.75".
Maximum workpiece weight: 30 lbs.

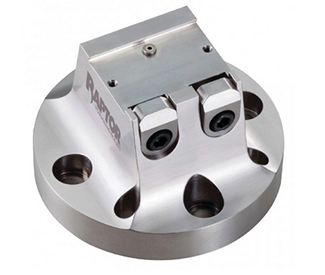

RAPTOR RWP-001SS

Art-No.:  RWP-001SS
1.5" Stainless Steel Dovetail Fixture,
H = 76,2 mm, D = 126,24 mm
  • Width Dovetail:   1.5 in
  • Height Dovetail:      0.125 in
  • Material Fixture:   Stainless Steel 17-4,
    Heat Treated to H-1150
  • Material Clamp: Stainless Steel 17-4
  • Height Fixture: 76,2 mm (3 in)

Description

The RWP-001SS is a 1.5" dovetail fixture for those that want the ultimate in strength and wear resistance. It offers superior clamping strength while allowing access to five sides of the workpiece.

Typical workpiece dimensions (L x W x H):  from: 2.35" x 2.25" x 0.50" to: 6.75" x 6.75" x 6.75".
Maximum workpiece weight: 30 lbs.

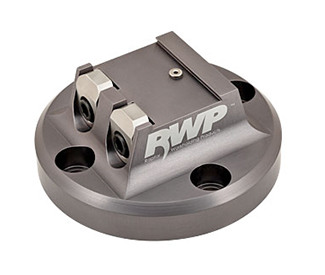

RAPTOR RWP-013

Art-No.:  RWP-013
1.5" Aluminium Dovetail Fixture,
H = 50,8 mm, D = 126,24 mm
  • Width Dovetail:   1.5 in
  • Height Dovetail:      0.125 in
  • Material Fixture:   7075-T6511 Aluminium,
    anodised Class 2, Type II
  • Material Clamp: Stainless Steel 17-4
  • Height Fixture: 50,8 mm (2 in)

Description

The RWP-013 is a 1.5" dovetail fixture used in four and five axis CNC machining, designed to connect directly to the Matsuura MAM 72-35V for milling applications. It can also be utilized in other machines when connected with an adapter or riser.

Typical workpiece dimensions (L x W x H):  from: 2.35" x 2.25" x 0.50" to: 6.75" x 6.75" x 6.75".

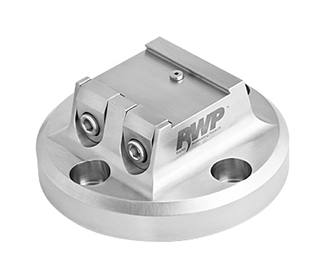

RAPTOR RWP-013SS

Art-No.:  RWP-013SS
1.5" Stainless Steel Dovetail Fixture,
H = 50,8 mm, D = 126,24 mm
  • Width Dovetail:   1.5 in
  • Height Dovetail:      0.125 in
  • Material Fixture:   Stainless Steel 17-4,
    Heat Treated to H-1150
  • Material Clamp: Stainless Steel 17-4
  • Height Fixture: 50,8 mm (2 in)

Description

The RWP-013SS is a 1.5" dovetail fixture used in four and five axis CNC machining, designed to connect directly to the Matsuura MAM 72-35V for milling applications. It can also be utilized in other machines when connected with an adapter or riser.

Typical workpiece dimensions (L x W x H):  from: 2.35" x 2.25" x 0.50" to: 6.75" x 6.75" x 6.75".

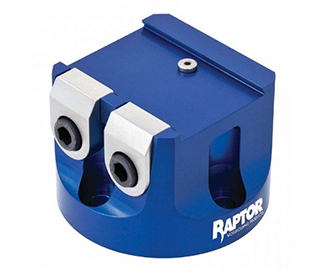

RAPTOR RWP-027

Art-No.:  RWP-027
1.5" Aluminium Dovetail Fixture,
H = 50,8 mm, D = 76,2 mm
  • Width Dovetail:   1.5 in
  • Height Dovetail:      0.125 in
  • Material Fixture:   7075-T6511 Aluminium,
    anodised Class 2, Type II
  • Material Clamp: Stainless Steel 17-4
  • Height Fixture: 50,8 mm (2 in)

Description

The RWP-027 is an 1.5" aluminum dovetail fixture with base 76,2 mm (3") diameter and 50,8 mm (2") height (not including the boss/plug area), with 4 mounting holes. Made specifically for the Yukiwa TNT-130L, but also adaptable to fit on many small rotary tables and lathes with a sub-plate. Bolt hole 60 mm for an 8 mm diameter bolt pattern.

Typical workpiece dimensions (L x W x H):  from: 2.35" x 2.25" x 0.50" to: 6.0" x 6.0" x 6.0".

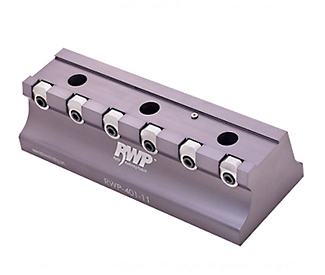

RAPTOR RWP-401-11

Art-No.:  RWP-401-11
1.5" Aluminium Rail Dovetail Fixture,
H = 76,2 mm, L = 279,4 mm
  • Width Dovetail:   0.75 in
  • Height Dovetail:      0.125 in
  • Material Fixture:   7075-T6511 Aluminium,
    anodised Class 2, Type II
  • Material Clamp: Stainless Steel 17-4
  • Height Fixture: 76,2 mm (3 in)

Description

The RWP-401-11 is a versatile 1.5" dovetail fixture designed for quick-change, which can be used to hold multiple smaller workpieces or one large workpiece. It is 279,4 mm (11”) long with six clamps and utilizes a 1.5" dovetail width x .125” high. It offers superior clamping strength and good access to five sides of the workpiece.

Typical larger workpiece dimensions (L x W x H):  from: 9.5" x 2.65" x 0.50" to 17.0" x 7.0" x 12.0".
