RAPTOR Workholding Products

0.281" Dovetail Fixtures

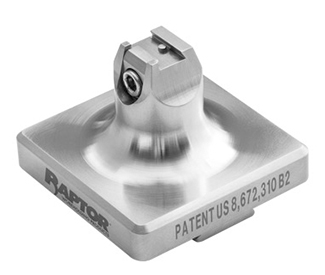

MINI-RAPTOR RWP-031SS

Art-No.:  RWP-031SS
Stainless Steel 0.281"W x 0.0781"H Dovetail Fixture
with .75" Dovetail Base
  • Dovetail Width:       0.281 in
  • Dovetail Height:           0.0781 in
  • Fixture-Material:           17-4 Heat Treated Stainless Steel
  • Fixture-Clamp: 17-4 Stainless Steel
  • Fixture Height: 1.418 in

Description

This Mini Raptor is a .281" dovetail fixture for milling applications. It is designed to connect directly to the following 0.75" dovetail fixtures: RWP-002, RWP-002SS, RWP-015, RWP-023, RWP-024 and RWP-030SS. This allows you to quickly machine smaller size parts without taking your primary fixtures off of the machine.

Typical workpiece size dimensions (L x W x H):  From: 0.478" x 0.478" x 0.50" To: 1.25" x 1.25" x 1.25"

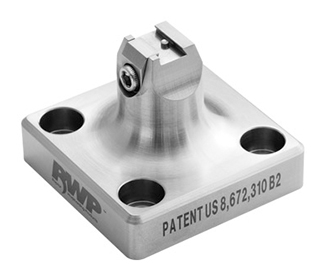

MINI-RAPTOR RWP-032SS

Art-No.:  RWP-032SS
Stainless Steel 0.281"W x 0.0781"H Dovetail Fixture
for Fixture Plates
  • Dovetail Width:       0.281 in
  • Dovetail Height:           0.0781 in
  • Fixture-Material:           17-4 Heat Treated Stainless Steel
  • Fixture-Clamp: 17-4 Stainless Steel
  • Fixture Height: 1.563 in

Description

The Mini Raptor RWP-032SS is a .281" dovetail fixture for milling applications, designed to connect to your machine using the four mounting holes.

Typical workpiece size dimensions (L x W x H):  From: 0.478" x 0.478" x 0.50" To: 1.25" x 1.25" x 1.25"
