Fixture Clamps with Hexagonal Brass Washers

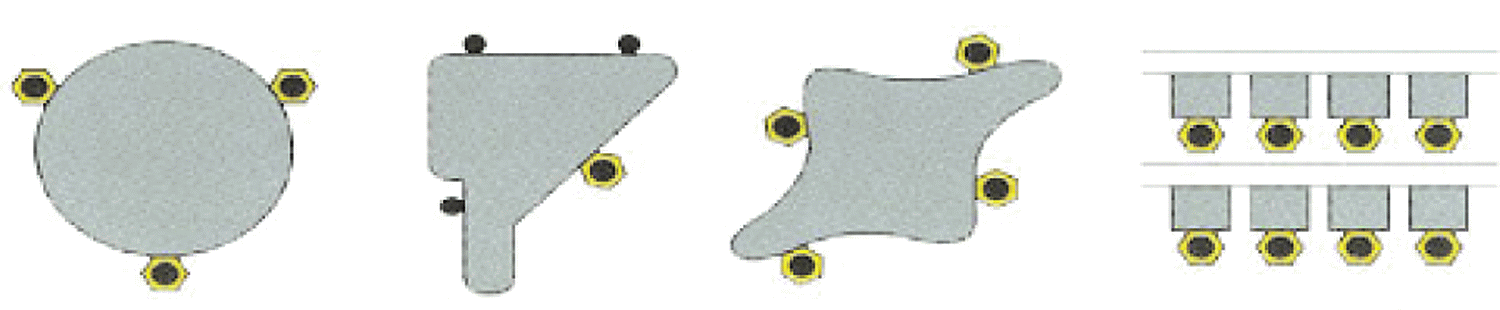

The in circumferential direction free movable Hexagonal Brass Washer from MITEE-BITE ensures gently but strong clamping and optimal adjustment to the angular position of the machined part.

All MITEE-BITE Fixture Clamps are characterized by their low profile, which is solving a multitude of problems in fixture construction.

In wrench size 20 mm available in V2A too.

HoldingHexagonThreadThreadHexagonalWasherClampingPerArt. No.
ForceSocketØLengthWasherHeightTravelPack
[kN][mm]D [mm]L [mm]SW [mm]H [mm]C [mm]
0.93M4 x 0,71082,80,81050204
3,44M6 x 1,012164,81,31050206
3,65M8 x 1,2512204,81,01250208
9,07M10 x 1,516206,41,61050210
18,08M12 x 1,7520259,52,0850212
27,012M16 x 2,0303012,72,5450216

V2A Version
3,65M8 x 1,2516206,41,0450207

A = Workpiece-to-Centerline
Distance

M4 = 3,8 mm
M6 = 7,8 mm
M8 = 10,2 mm
M10 = 10,2 mm
M12 = 12,7 mm
M16 = 15,0 mm

Spare-Screws

ThreadPer PackArt. No.
* V2A Type
M41050363
M61050365
M8850367
M8VA*850366
M10450369
M12450371
M16450373

Spare-Hexagonal Washers

SizePer PackArt.No.
* V2A Type
M41010580
M61010582
M8810584
M8VA*810585
M10410586
M12410590
M16410592
