Fixture Clamps with Variable Hexagonal Washer

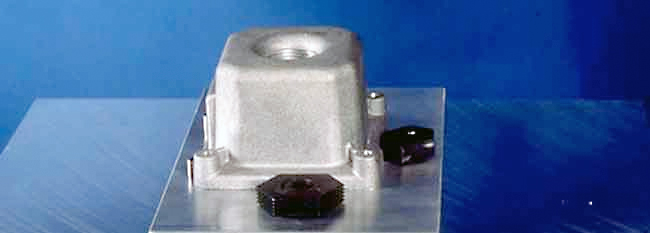

MITEE-BITE adjustable hexagonal cam action clamps provide reducing of costs and labour input for clamping devices.

Without having to displace a drill hole they enable to bridge the clamping range up to 24 mm merely by rotating the clamp to one of its six edges of which each one has a different distance from the centerline by 1 mm.

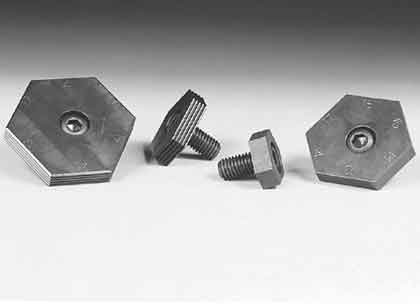

MITEE-BITE adjustable hexagonal cam action clamps are available with a smooth washer for machined parts and a knife edge washer for rough pieces and castings. They come with a M12 cam screw and are self-adjusting to the angular position of the machined part.

MITEE-BITE cam action clamps are perfectly qualified for modular clamping systems.

ClampWorkpiece-to-Centerline DistanceEdge
Part No.[mm]
All clamps are 10mm high. - Holding Force up to 18kN.
9511012, 13, 14, 15, 16, 17smooth
9511512, 13, 14, 15, 16, 17serrated
9512018, 19, 20, 21, 22, 23smooth
9512518, 19, 20, 21, 22, 23serrated
9513024, 25, 26, 27, 28, 29smooth
9513524, 25, 26, 27, 28, 29serrated
9514030, 31, 32, 33, 34, 35smooth
9514530, 31, 32, 33, 34, 35serrated
